MX.JCX-130 model in 1 CNC busduct joint connection busbar machine FAQ:

Q1: What is the main function of the MX.JCX-130 busbar machine?

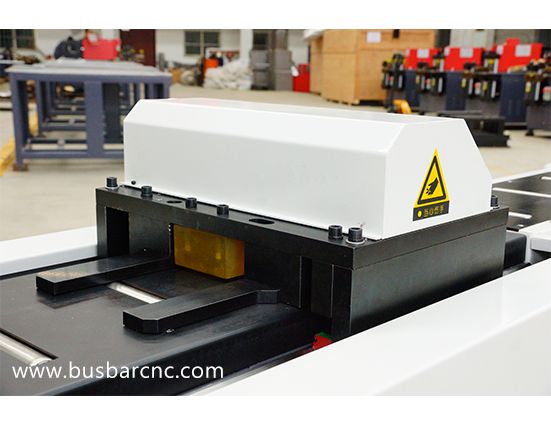

A1: The MX.JCX-130 CNC Busduct Joint Connection Busbar Machine is designed to process busduct connection busbars for BBT trunking systems, including punching, stretching, bulging, cutting, and other operations automatically.

Q2: What are the main features of this machine?

A2: Key features include:
1. Automatic processing of busduct connection busbars without manual intervention.
2. Raw materials are clamped once with repeat switching clamp, reducing waste and increasing finished product rate.

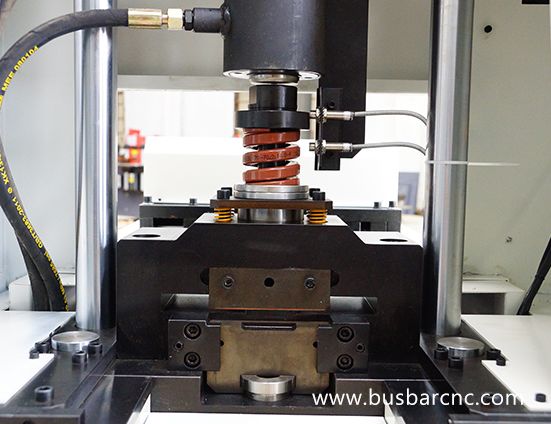

3. Hydraulic striking head provides strong pressure, stable performance, and high safety.
4. Hydraulic clamps ensure strong and stable force on the busbar.
5. Touch screen interface allows easy setting of parameters for various busbar processing tasks.
6. High-precision ball screw and linear guide rail ensure high efficiency, low energy consumption, and stability.

Q3: What are the technical specifications of the MX.JCX-130?

A3: Technical parameters include:
- Nominal Pressure: 200 KN
- Max Position Speed of X Axis: 50 m/min
- Striking Cylinder Trip: 30 mm
- Striking Frequency: 60 times/min
- Hole Distance Accuracy: < ±0.1 mm
- Machining Range: 5 × 130 mm
- Overall Size: 3600 × 1000 × 1500 mm
- Weight: 1300 kg

Q4: What types of busbars can the MX.JCX-130 process?

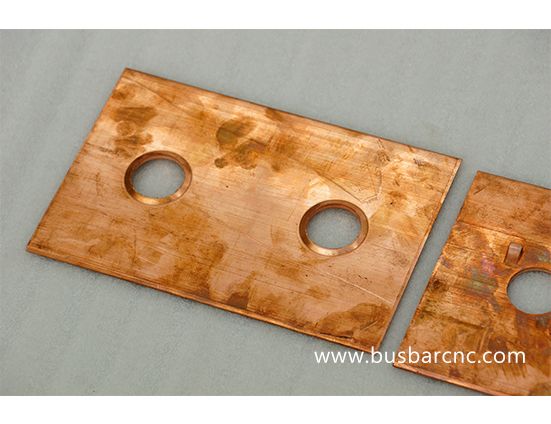

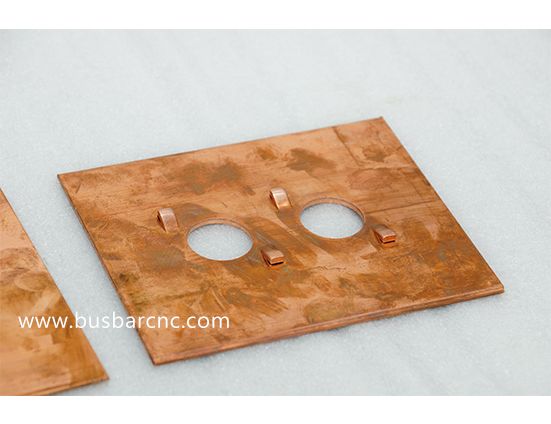

A4: The machine is suitable for processing copper busbars used in busduct connection systems, efficiently handling various punching, stretching, bulging, and cutting operations with high automation.

Q5: Is there a demonstration video available for this machine?

A5: Currently, no video is available. A demo video can be added later using an iframe to show the machine in operation.
