The 503U-3-C is a professional hydraulic 3-in-1 busbar processing machine that combines bending, punching and cutting functions. With 16mm max thickness and 200mm max width capacity, this busbar machine is ideal for copper and aluminum processing in electrical manufacturing applications. Features high precision bending with 1 accuracy for switchgear and transformer production.
503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm
1.Main picture:
This series 503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm has three units: punching shearing and bending. It is easy to adjust each unit to shorten the processing time and improve the production efficiency.

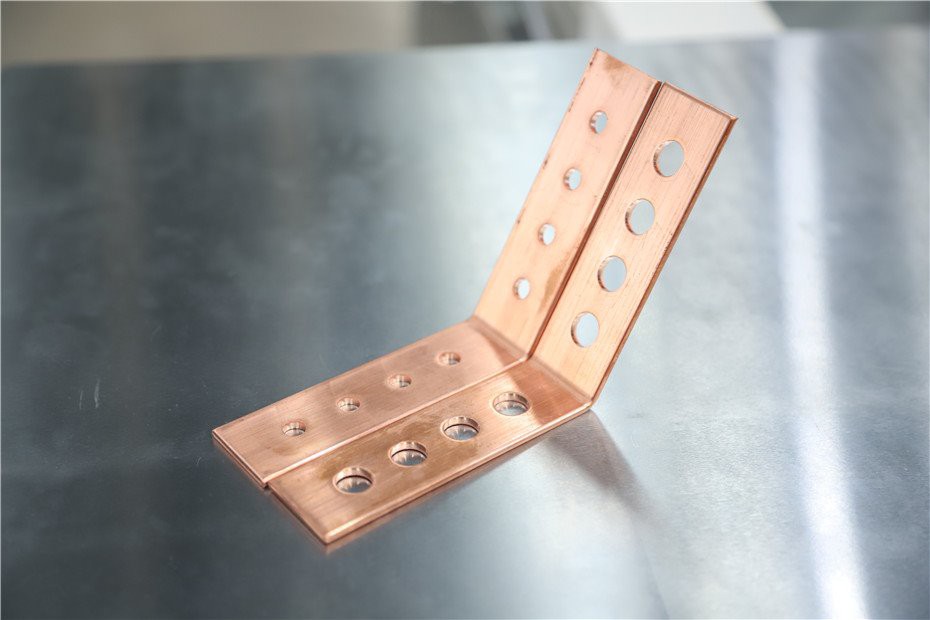

The bending unit uses the imported PLC control system, which has a stable system and high precision. It is used to process copper and aluminum busbars in different specification. By relative operation unit it can and quickly do all kinds of processing to copper and aluminum Busbar, such as shearing, punching(circular hole and oblong hole), flat/Vertical bending and knurling.change different mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting,flat Crushing pushing and bending.
2.Three working units:
1)Punching unit:
2)Shearing unit:
3)Bending units:
3.Packing and shippment:
1)Firstly,the machine must be packed with plastic sheet.
2)Secondly,the machine must be packed in a wood case.
4.Service:
24 hours free hotline will be waiting for you once you have bought our machine.
We will try our best to solve your problems by video.Quality will be our best brand for you.We will be your best choice.
E-mail: Leanne@busbarmc.com
Whatsapp: +8613853146766
Skype: Leanne.Li88
www.busbarmc.com
Hot Tags: 503U-3-C cnc busbar processing machine 16mm 200mm, cnc busbar machine, 3 in1 busbar machine, busbar bending machine, busbar punching machine, busbar cutting machine, copper busbar bending machine, cnc bending machine, cnc punching machine, bending machine, busbar machine, copper busbar machine, cutter machine, machine bending, China, suppliers, manufacturers, factory, price
LT Busbar Machine Videos:
FAQ – 503U-3-C Hydraulic Busbar Processing Machine
1. What is the main function of the 503U-3-C busbar processing machine?
The 503U-3-C machine integrates three processing units: punching, shearing, and bending. It is designed for processing copper and aluminum busbars within 16mm thickness and 200mm width.
2. What materials can this machine process?
This machine is suitable for copper and aluminum busbars in various industrial electrical applications.
3. Does the bending unit use a control system?
Yes, the bending unit is equipped with an imported PLC control system to provide stable performance and accurate bending results.
4. What types of punching shapes can the machine perform?
The machine can punch circular and oblong holes. By changing molds, it can also perform special punching requirements.
5. Can the machine perform embossing or flat pressing?
Yes, by replacing the molds, the machine can perform embossing, flat pressing, cable connector processing, and other customized operations.
6. What are the advantages of the three-unit structure?
Each unit can be adjusted independently, helping reduce processing time and improve overall production efficiency.
7. How is the machine packed for shipment?
The machine is first covered with a plastic sheet and then packed in a wooden case to ensure safe transportation.
8. What after-sales service is provided?
We offer 24-hour online support. Most questions can be solved through video guidance or remote assistance.
9. What voltage or power options are available?
Standard power specifications depend on customer requirements. Specific voltage configurations can be customized and confirmed before order.
10. Is it easy to replace molds?
Yes, the punching, shearing, and bending molds can be replaced according to different processing tasks.
11. What industries commonly use this machine?
It is mainly used in electrical panel manufacturing, switchgear production, transformer factories, and power distribution equipment workshops.
12. What is the maximum processing size?
The machine can process busbars up to 16mm thickness and 200mm width.
